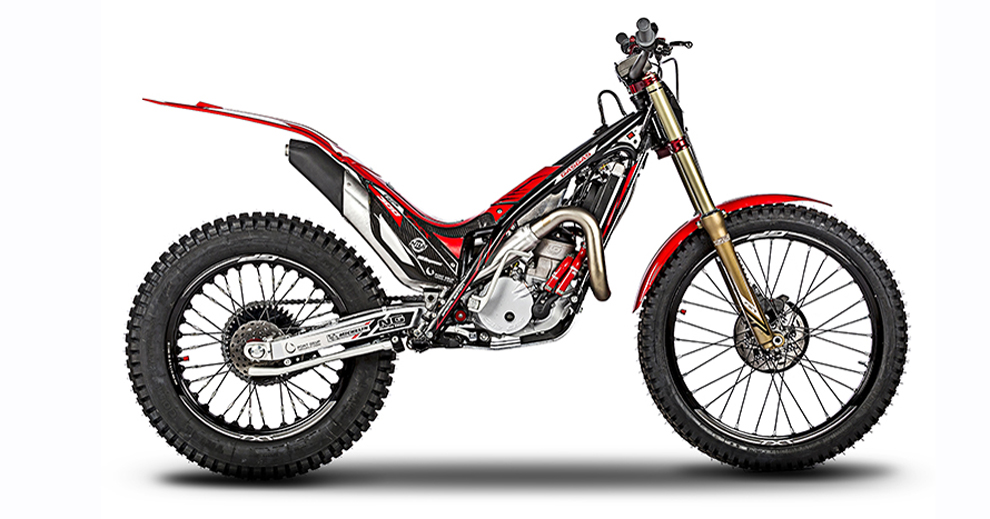

| TXT GP 125 – 2018 |
| Engine |
Single-cylinder 2-stroke, liquid cooled |
| Displacement |
124,8 cc |
| Bore x stroke |
54 x 54,5 mm |
| Gearbox |
6 gears with GG 4/6 technology |
| Clutch |
Hydraulic system by diaphragm GG 1/3 |
| Frame |
Tubular frame made of Chrome-moly |
| Swingarm |
Aluminium, progressive linkage system |
| Front fork |
TECH with aluminium bar Ø 39, 180mm of travel |
| Adjustability |
Rebound, compression, end stroke and spring preload regulation |
| Shock absorber |
ÖHLINS hydraulic mono shock absorber (2 ways) |
| Adjustability |
Rebound and spring pre-load ajustable. |
| Suspension travel |
Rear wheel travel 174 mm |
| Rim type |
Light aluminium spoke rim |
| Rim – tyre |
Front: 1.6 x 21 – Michelin Trial X11 2.75 x 21 |
| Rim – tyre |
Rear: 2.15 x 18 – Michelin Trial X11 4.00 x 18 TL |
| Front brake |
185mm disc NG WAVE floating, monoblock 4 pistons BRAKTEC caliper |
| Rear brake |
150mm disc NG WAVE, autostand system 2 pistons BRAKTEC caliper |
| Dry weight |
66,5 kg |
| Dimensions |
Length x width x height: 2.010 x 825 x 1.130 mm |
| Wheelbase |
1.320 mm |
| Seatheight |
630 mm |
